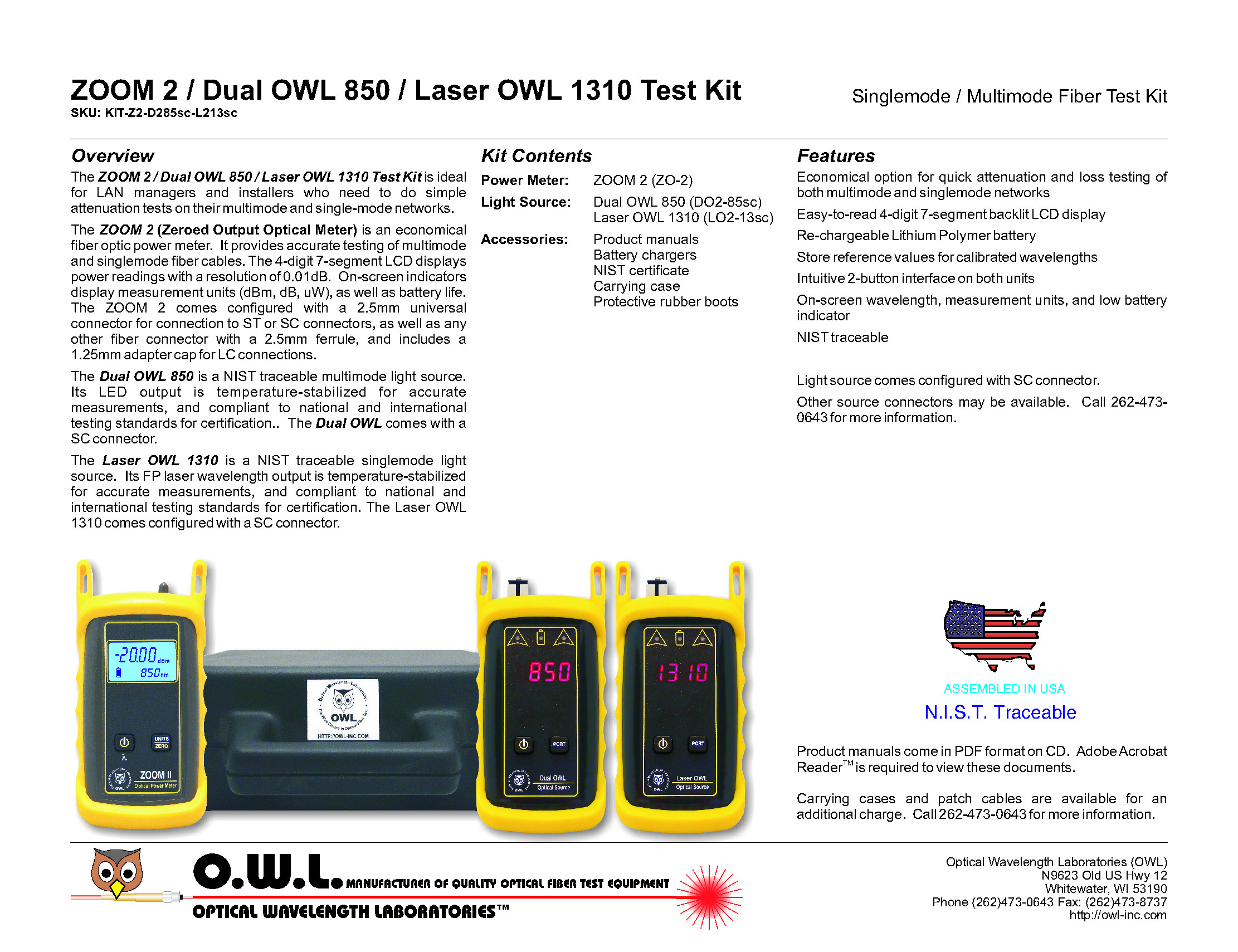

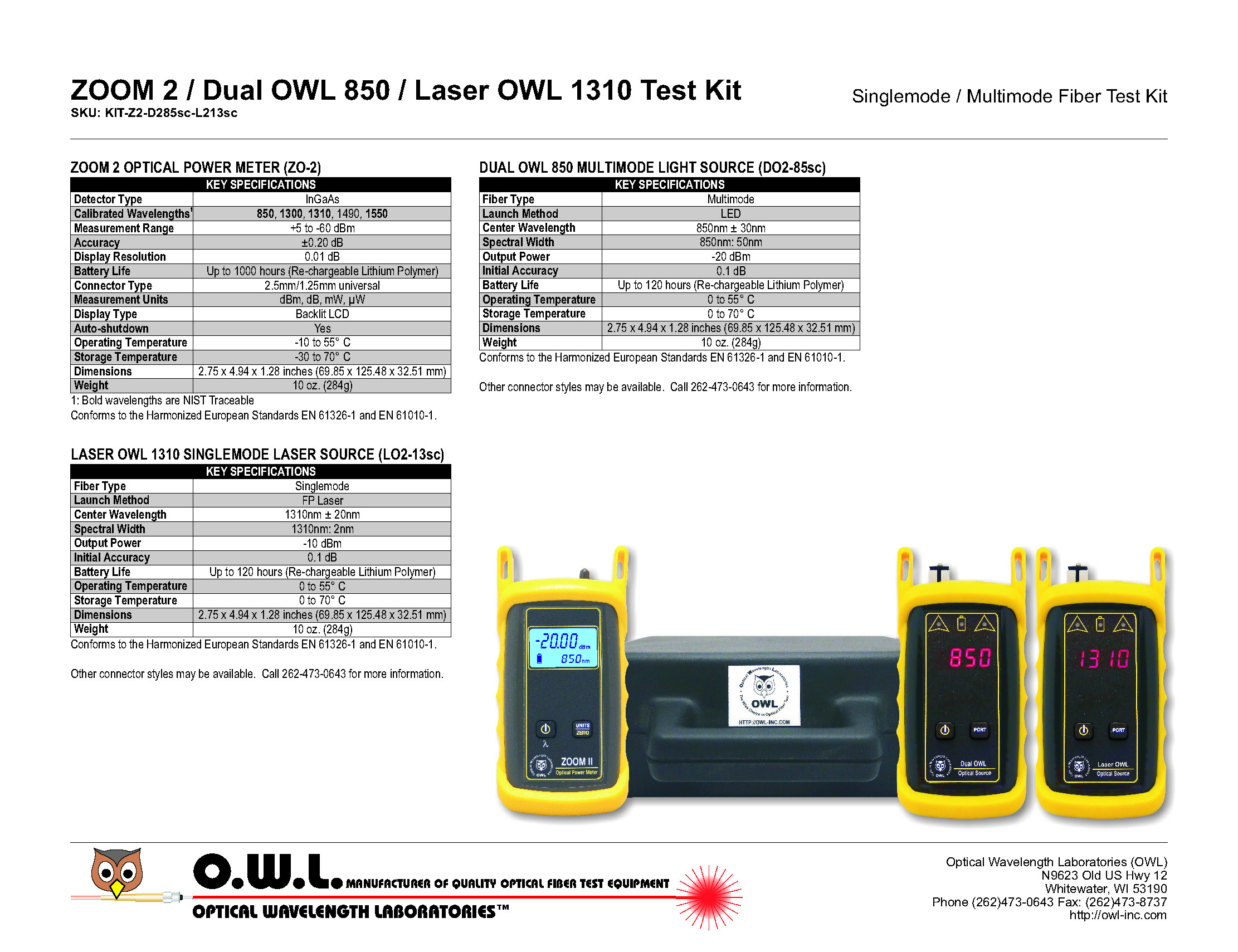

ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit

The ZOOM 2 / Dual OWL 850 / Laser OWL 1310 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single-mode networks. The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM 2 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule, and includes a 1.25mm adapter cap for LC connections. The Dual OWL 850 is a NIST traceable multimode light source. Its LED output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification.. The Dual OWL comes with a SC connector. The Laser OWL 1310 is a NIST traceable singlemode light source. Its FP laser wavelength output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification. The Laser OWL 1310 comes configured with a SC connector.

http://www.owl-inc.com/literature/sub/pdf/datasheets/kit-z2d285l213.pdf
