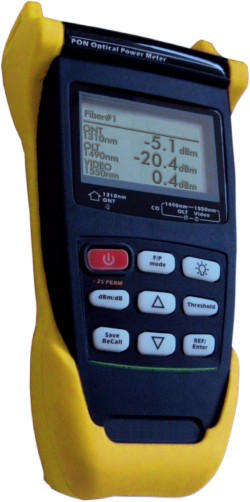

PON Power Meter
$545.00
The PON-2M PON power meter allows users to simultaneously measure signals upstream (1310nm) from the ONT and downstream (1490nm & 1550nm) from the OLT in FTTH/PON networks.
- Hand-held PON power meter
- NIST Traceable
The PON-2M PON power meter allows users to simultaneously measure signals upstream (1310nm) from the ONT and downstream (1490nm & 1550nm) from the OLT in FTTH/PON networks.
Up to 100 data points can be stored in internal memory, which can be recalled on the LCD display at a later time.
Up to 10 threshold sets can be stored in internal memory, allowing users to measure PON signals against pre-set thresholds based on different measurement points in the FTTH network.
This unit runs 36 hours on 3 AAA batteries, and has 10-minute shutdown feature.
| KEY SPECIFICATIONS | KEY BENEFITS | |
| Meas. Range
ORL Accuracy |
1310: +10 to -35 dBm 1490: +10 to -50 dBm 1550: +25 to -45 dBm 35 dB less than 1.5 dB ±0.5 dB (burst signal) ±0.2 dB @ -10 dBm 10 100 SC Yes Yes ~36 hours -20 to +60° C -10 to +50° C 90% relative (3) AAA batteries 7.48” x 3.54” x 1.57” ~1 pound |
|
