Tester Man Tool Kit-QUAD Multimode/Singlemode
$3,295.50
The TesterMan TM-001MMSM, is is the kit you need to install and test multimode 850/1300nm and 1310/1550nm singlemode fiber optics networks.

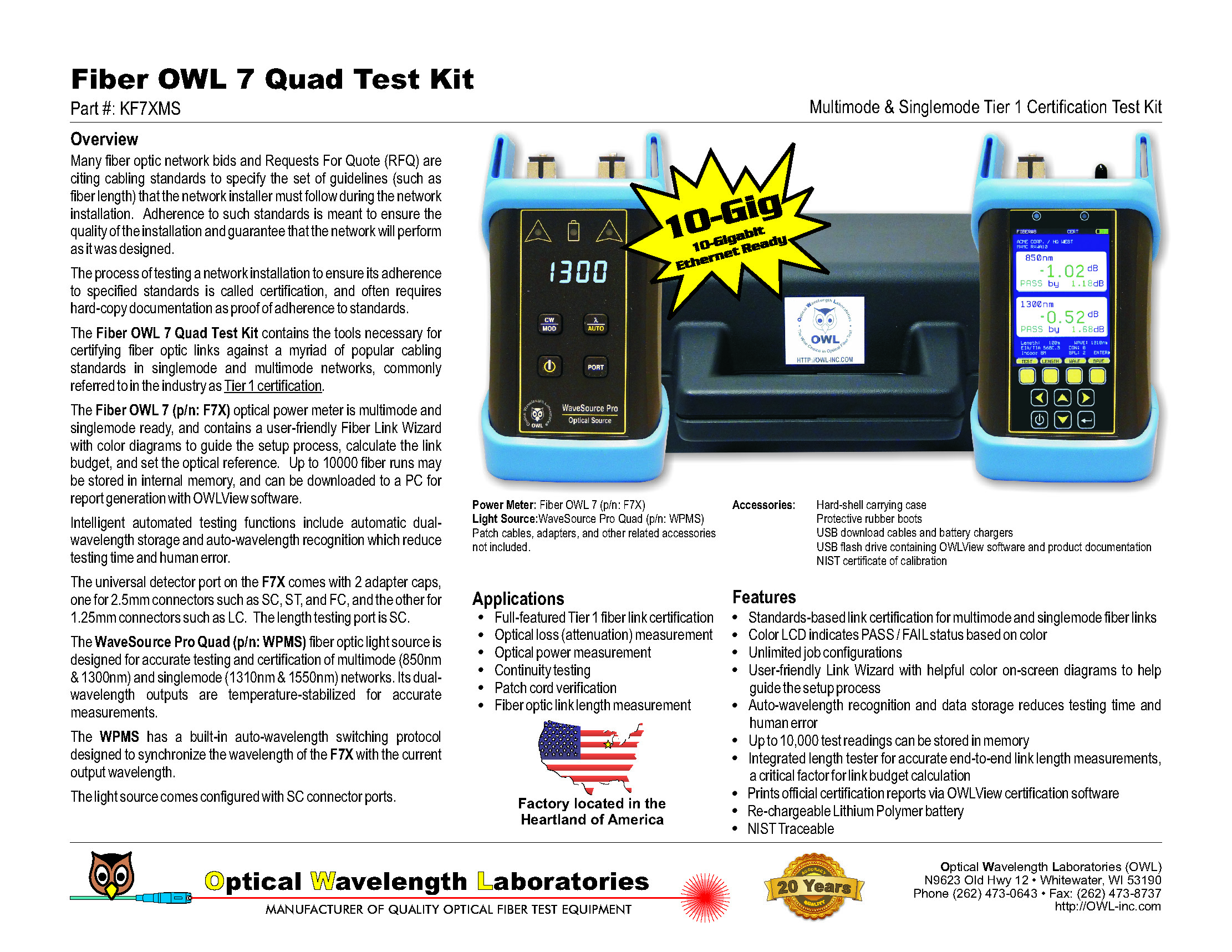

The Fiber Owl 7/ WaveSource Pro Quad (included) offers the fiber optic professional some of the best values in the industry.
Whether performing standards-compliant testing, or just simple optical loss tests, there is a Fiber Owl 7 kit configuration to meet nearly every need.
This tool kit will allow you to terminate and test both multimode and singlemode (8.3/125) fiber optics networks. This MM/SM Kit comes with the 400 X, heavy duty scope. We have other combinations available.
So, if this one does not meet your requirements, simply give us a call at 512-785-9024 or send us an email
Please note; ADHESIVE AND PRIMER NOT INCLUDED. Please add to your cart separately.
Tool Kit Contents
| 1 | Carbide Scribe |
| 10 | 12 Micron (Yellow) Pol. Film |
| 10 | 3 Micron (Pink) Pol. Film |
| 10 | .3 Micron (White) Pol. Film |
| 1 | ST Bare Fiber Adapter |
| 100 | Non-Woven Dry Wipes |
| 1 | Universal Crimp Tool |
| 1 | Economy Kevlar Shears (Red Handle) |
| 1 | Universal Polish Puck for ST’s, SC’s, and FC’s |
| 1 | LC/MU Stainless Polish Puck |
| 1 | LC Inspection Scope Adapter |
| 1 | Buffer Tube Splitter |
| 1 | Medium Density Polishing Pad |
| 1 | 4 Oz Plastic Alcohol Bottle |
| 1 | Durable Tool Kit |
| 1 | Piano Wire |
| 1 | Universal Jacket Stripper |
| 1 | Buffer Stripper |
| 2 | SC/APC-SC/APC Adapters |
| 1 | Mandrel for MM testing |
| 2 | ST-ST Adapter |
| 2 | SC-SC Adapter |
| 2 | SC-ST Adapter |
| 1 | SC-LC Adapter |
| 2 | LC-LC Adapter |
| 2 | SC-FC Adapter |
| 1 | Dewalt Safety Glasses |
| 1 | Precision Visual Fault Locator (VFL) |
| 1 | 400X Inspection Scope (SC, ST, FC & LC) |
| 1 | Bi-Directional Jacket Slitter (Unit A) |
| 2 | SC-SC Singlemode 1 Mtr, Test Lead |
| 2 | SC-ST Singlemode 1 Mtr, Test Lead |
| 2 | SC-LC Singlemode 1 Mtr, Test Lead |
| 2 | SC-SC 62.5/125 1 Mtr, Test Lead |
| 2 | SC-ST 62.5/125 1 Mtr, Test Lead |
| 2 | SC-LC 62.5/125 1 Mtr, Test Lead |
| 2 | SC-SC 50/125 1 Mtr. Test Lead |
| 2 | SC-ST 50/125 1 Mtr. Test Lead |
| 2 | SC-LC, OM3, 1 Mtr. Test Lead |

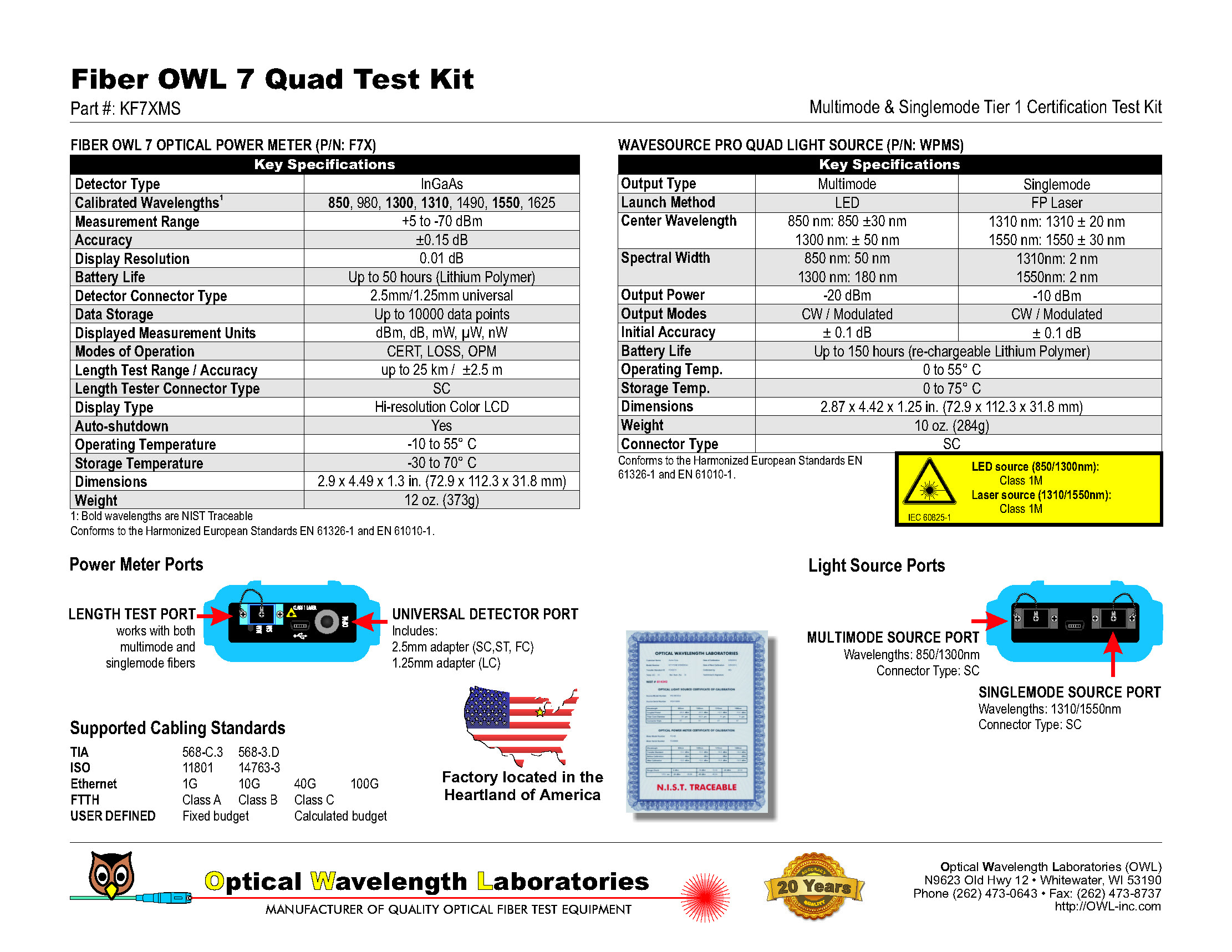

| 1 | Fiber OWL 7 / WaveSource Pro Quad — MM:850/1300 and SM: 1310/1550 |
